SVR

The Liberty Security Stream Video Recorder provides 24/7 continuous local video recording for up to 8 cameras, storing footage securely on-site with no clip limits, no monthly clip quotas, and no reliance on cloud-only storage. With 1TB or 2TB of onboard storage, HDMI local playback, and full remote access via the Liberty Live app, the ADC-SVR210 is the recommended recording solution for Liberty homes requiring always-on video evidence.

What is the Stream Video Recorder (SVR)?

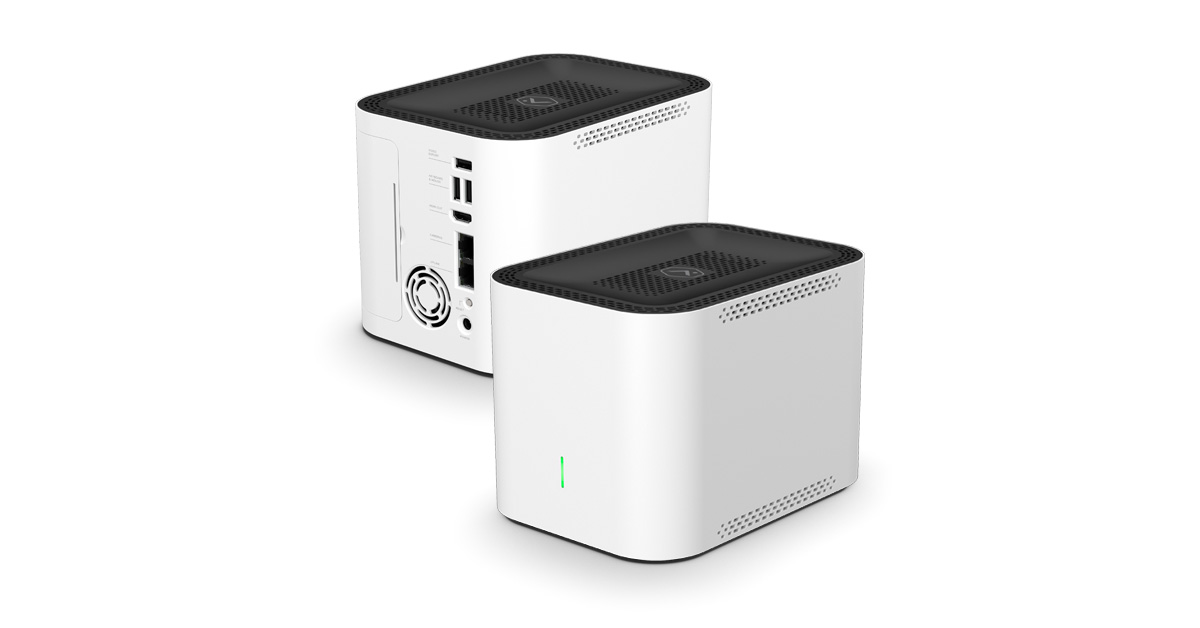

The ADC-SVR210 is our residential-grade Stream Video Recorder. It is a cloud-managed, on-site NVR (network video recorder) built specifically for the Liberty Live platform. Unlike standard clip-based video plans that limit the number of uploaded clips per month, the SVR210 records every second of footage from all connected cameras continuously, storing it locally on the unit’s internal hard drive. Footage is automatically tagged with Liberty alarm system events, door openings, motion triggers, and alarm activations, so you can jump directly to relevant moments using the interactive timeline in the Liberty Live app. The SVR210 also supports third-party ONVIF Profile S and VAPIX cameras, making it compatible with a wide range of existing IP cameras in addition to all current Liberty cameras.

Key Features

Records up to 8 cameras simultaneously — 24/7 continuous local storage
Up to 4MP recording resolution with Liberty cameras — crisp, detailed footage
Available in 1TB or 2TB internal hard drive variants — choose storage to match your needs
No clip limits — continuous recording replaces monthly clip quota restrictions
Event-tagged timeline — footage automatically marked with Liberty alarm system events
Interactive timeline — scroll or jump directly to key moments in recorded footage
Remote access — view live feeds and recorded footage via Liberty Live app from anywhere
1 x HDMI port — connect a monitor for local live view and playback on-site
1 x USB 3.0 + 2 x USB 2.0 — fast local clip export to external drive
Cloud-managed — remote monitoring, firmware updates, and configuration via Liberty Live
Continues recording during internet outages — footage stored locally regardless of connectivity
Compatible with Liberty Live app on iOS, Android, and web browser

Technical Specifications

Model	ADC-SVR210 (Stream Video Recorder 210)
Camera Channels	Up to 8 cameras
Recording Resolution	Up to 4MP (2688 x 1520) with Alarm.com cameras; higher with supported third-party cameras
Storage Options	1TB internal HDD or 2TB internal HDD (pre-installed)
Recording Mode	24/7 continuous local recording — no clip limits
LAN Ports	2 x Gigabit RJ45 (10/100/1000 Mbps) with status LEDs
Local Display	1 x HDMI — connect monitor for on-site live view and playback
USB Ports	1 x USB 3.0 + 2 x USB 2.0 — local clip export to external drive
Third-Party Cameras	ONVIF Profile S and VAPIX compatible
Operating Temp	32°F to 104°F (0°C to 40°C)
Dimensions	7.7 x 7.9 x 5.5 in (14.5 x 20 x 13.9 cm)
Cloud Management	Yes — managed via Alarm.com platform
App	Liberty Live — iOS, Android, web
Note	Requires SVR service add-on. PoE switch (e.g. TP-Link DS105GP) required for multi-camera PoE deployments. Wi-Fi cameras perform best with ADC-SG130 Smart Gateway.

Frequently Asked Questions

What is the difference between the SVR210 and standard Liberty Live clip-based recording?

Standard Liberty Live video plans record and upload event-triggered clips to the cloud — typically limiting the number of clips uploaded per month. The ADC-SVR210 records all cameras continuously, 24/7, to its local hard drive — no clip limits, no monthly quotas, and no missed footage. Cloud clips continue to be generated alongside local recording, so you get both local storage and cloud access.

How many days of footage does the SVR210 store?

Storage duration depends on the number of cameras, recording resolution, and motion activity. As a general guide, the 2TB model typically stores 30 or more days of footage across 4 cameras at 4MP resolution. Alarm.com provides an interactive storage calculator on their website to estimate duration based on your specific camera count and resolution settings.

Does the SVR210 keep recording if my internet goes down?

Yes. The ADC-SVR210 records footage locally to its internal hard drive regardless of your internet connection. As long as the unit has power and the cameras are connected via your local network, recording continues uninterrupted. Footage stored during the outage becomes accessible again via the Liberty Live app once internet is restored.

Can I connect PoE cameras directly to the SVR210?

The SVR210 has one dedicated LAN port for PoE cameras, which supports a single PoE camera connection directly. To connect multiple PoE cameras, a PoE network switch, such as the TP-Link Omada DS105GP, is required to provide additional ports. Liberty’s technicians will include the appropriate PoE switch when installing multi-camera SVR systems.

Can the SVR210 record third-party cameras I already own?

Yes. The ADC-SVR210 supports third-party IP cameras that comply with ONVIF Profile S or VAPIX standards. However, third-party cameras will not integrate with Alarm.com event tagging and may record at different resolutions. For best performance and full platform integration, Liberty Alarm.com cameras are recommended. Contact Liberty to confirm compatibility of any existing cameras.
