SVR – Commercial

The Liberty Security Commercial Stream Video Recorder is a Pro Series 16-channel NVR engineered for large commercial properties, multi-tenant buildings, and enterprise security deployments. With 16 built-in PoE ports, up to 24TB of local storage, a rack-compatible 1U chassis, and 70Mbps aggregate recording throughput, the CSVR2116P delivers the video evidence retention and operational visibility that commercial properties demand, all managed through our Business platform and the Liberty Live app.

What is the Commercial Stream Video Recorder?

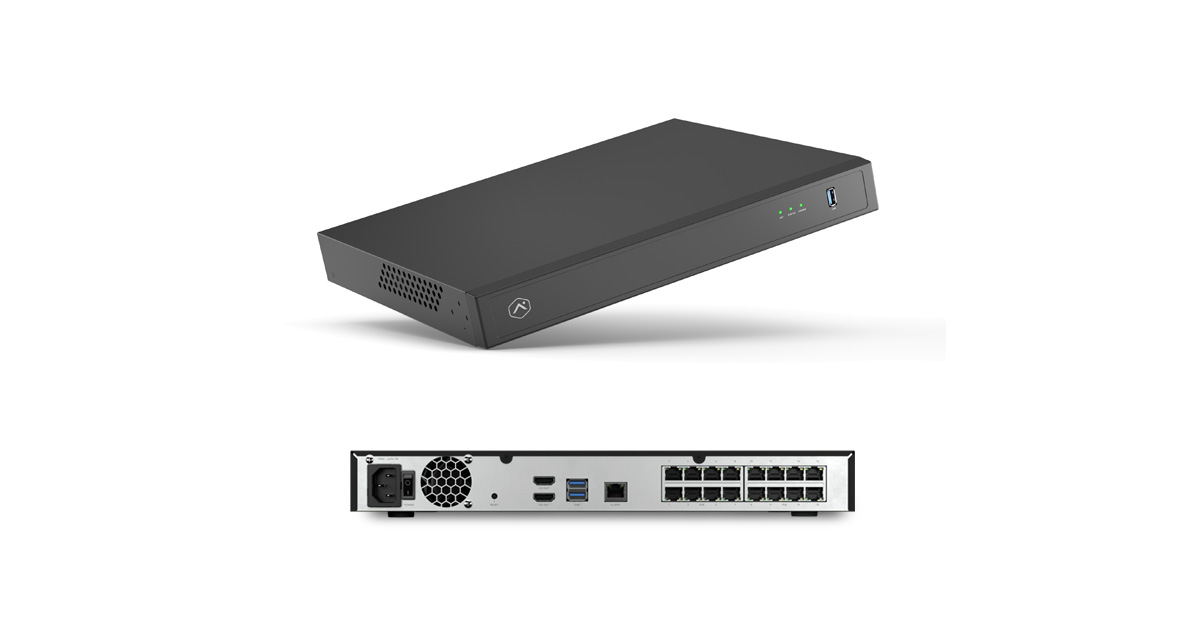

The ADC-CSVR2116P is the flagship model in the Pro Series Commercial Stream Video Recorder lineup. It is a rack-mounted, cloud-managed NVR purpose-built for business security, replacing the previous CSVR2016P series. Its 16 integrated PoE ports power and connect Pro Series cameras and compatible third-party PoE cameras via a single Ethernet cable per camera, eliminating the need for a separate PoE switch. Recorded footage is automatically tagged with Business events, access control door openings, alarm activations, motion detections, enabling rapid, event-anchored playback from the Liberty Live app or on-site via dual 4K HDMI and Full HD VGA monitor outputs. Storage options range from 6TB to 24TB (dual 12TB drives), making it scalable to the retention requirements of any commercial operation.

Key Features

Records up to 16 cameras simultaneously — 24/7 continuous local storage
70 Mbps aggregate recording throughput — handles 16 high-resolution streams simultaneously
Up to 4MP recording resolution with Pro Series cameras
Dual 4K HDMI outputs — connect up to two 4K monitors for local live view and playback
Full HD VGA output — additional monitor output for flexible control room setups
USB 3.0 port — fast local clip and archive export to external drives
Event-tagged timeline — footage automatically linked to Alarm.com for Business events
Multi-site management, access control video tie-in
Remote access via Liberty Live app — view live and recorded footage from anywhere

Technical Specifications

Model	ADC-CSVR2116P (Pro Series Commercial SVR)
Recording Channels	Up to 16 cameras
Built-In PoE Ports	16 x PoE ports — powers and connects cameras via single Ethernet cable
Recording Throughput	70 Mbps aggregate (all 16 channels combined)
Recording Resolution	Up to 4MP with Pro Series cameras
Storage Variants	1x6TB \| 1x12TB \| 2x12TB (24TB total)
Storage Bays	2 internal HDD bays
Local Display	2 x 4K HDMI + 1 x Full HD VGA — supports up to 2 monitors simultaneously
Export	USB 3.0 — fast clip and archive export
Chassis	1U rack-compatible — fits standard 19-inch server rack
Camera Network Port	Discrete RJ45 for dedicated camera network (simplified networking)
Third-Party Cameras	ONVIF Profile S compatible
Cloud Management	Alarm.com for Business platform — multi-site, event tagging, remote access
App	Liberty Live (powered by Alarm.com for Business)
Warranty	1-year limited warranty
Note	Requires Business service plan with SVR add-on. Storage duration varies by camera count, resolution, and activity level.

Frequently Asked Questions

What is the difference between the ADC-SVR210 and ADC-CSVR2116P?

The ADC-SVR210 is Liberty’s residential-grade SVR — supporting up to 8 cameras, available in 1TB or 2TB, with a desktop form factor. The ADC-CSVR2116P is the commercial-grade Pro Series CSVR — supporting up to 16 cameras, available in up to 24TB, with built-in PoE for all 16 cameras, dual 4K monitor outputs, and a 1U rack-mount chassis for IT infrastructure integration. The CSVR2116P is the right choice for any commercial property with more than 8 cameras or requiring rack deployment.

Does the CSVR2116P require a separate PoE switch?

No. Unlike the residential ADC-SVR210, the ADC-CSVR2116P includes 16 built-in PoE ports, enough to power and connect all 16 cameras directly without a separate PoE switch. This simplifies installation, reduces equipment costs, and creates a cleaner, more reliable camera network with a single discrete camera network port for network segmentation.

How much storage does the CSVR2116P provide and how long will footage be retained?

The CSVR2116P is available in 6TB, 12TB, and 24TB configurations. At 16 cameras recording 24/7 at 4MP resolution, the 24TB model typically provides 30 or more days of continuous retention. Lower camera counts and resolutions extend retention accordingly. Alarm.com provides a storage calculator to estimate retention based on your specific configuration.

Can the CSVR2116P integrate with access control systems?

Yes. As part of the Alarm.com for Business platform, the CSVR2116P automatically tags recorded footage with access control events — door openings, keypad entries, and alarm activations. This allows operators to immediately pull the camera footage linked to any access event from the Liberty Live app, without scrubbing through hours of footage manually.

Can Liberty install the CSVR2116P in a server room or equipment rack?

Yes. The ADC-CSVR2116P has a 1U rack-compatible chassis designed to mount in standard 19-inch server racks. Liberty’s certified commercial technicians handle full installation, network configuration, camera pairing, and Alarm.com for Business account setup, including rack mounting, cable management, and testing of all 16 camera channels.
